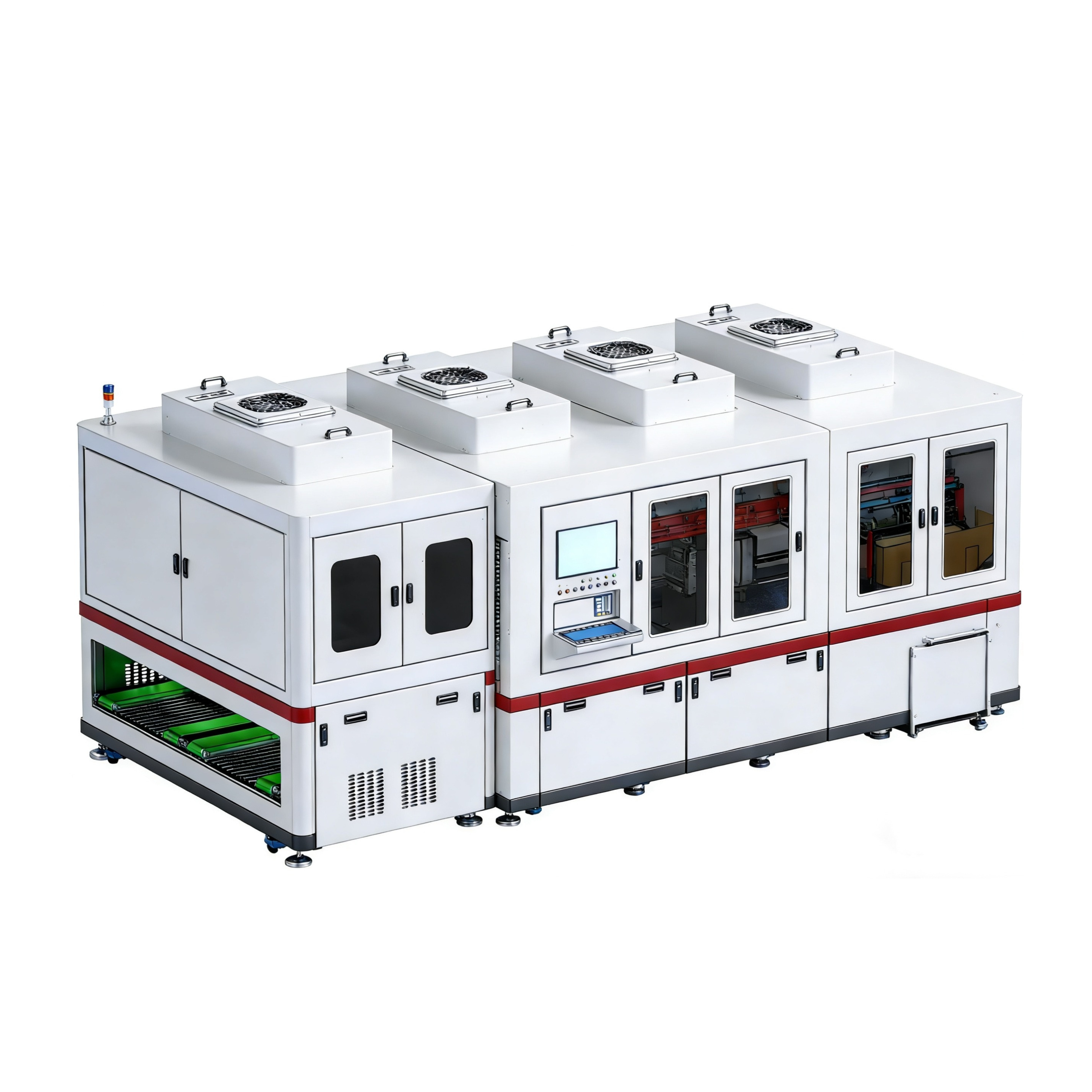

UTG Full-Automatic Laser Cutting and Splitting Machine

This equipment features fully automated production, and is dedicated to the precision cutting of materials such as UTG folding screens, mobile phone camera back covers, home buttons, optical filters, tempered and non-tempered glass, LCD panels, etc. The cutting and splitting range can be customized, with the minimum cuttable thickness reaching 30μm.

Products
UTG Full-Automatic Laser Cutting and Splitting Machine
UTG Full-Automatic Laser Cutting and Splitting Machine
UTG Full-Automatic Laser Cutting and Splitting Machine
UTG全自动激光切割裂片机

This equipment features fully automated production, and is dedicated to the precision cutting of materials such as UTG folding screens, mobile phone camera back covers, home buttons, optical filters, tempered and non-tempered glass, LCD panels, etc. The cutting and splitting range can be customized, with the minimum cuttable thickness reaching 30μm.

1. Adopting femtosecond new process technology, it can quickly cut transparent materials such as glass;

2. High dimensional accuracy, small edge breakage, and no taper; Low thermal impact, minimal debris and dust, excellent processing quality;

3. The laser adopts femtosecond laser, which has good beam quality, small focusing spot, and high power stability;

4. The equipment adopts imported high-speed and high-precision linear motors


Contact Information Contact Information

Consulting product Consulting product
Product Application

Suitable for coding and precision cutting of materials such as UTG foldable screens, phone camera back covers, Home buttons, filters, reinforced and non reinforced glass, LCDs, etc

Technical parameters


serial number

Project

Technical parameters

1

Cutting laser

1064nmflysecond

2

Minimum focused spot of cutting laser

<2um

3

Cutting laser power

≥20W

4

Split laser

CO2

5

Splitting laser power

60W

6

Laser lifetime

>20000hour

7

Cutting method

Cutting head method

8

Platform idle speed

speed1000mm/s,Acceleration1G

9

precision

Repetitive positioning accuracy≤±3μm, positioning accuracy≤±8μm @25℃±1℃

10

cutting/Fragmentation range

600mm*700mm(Customizable)

11

Cutting speed of fragments

50-150mm/s

12

TT

Confirm according to the drawing

13

cutting/Slice thickness

glass: 0.03~0.2mmedge chipping≤2um

14

Machine control system software

LASER STUDIOIntegrating vision, laser, and motion

15

electricity demand

380V/50Hz/7KVA

16

Total weight of equipment

4000Kg



This equipment is fully automated for fast and precise cutting of UTG glass and transparent brittle materials.
