This article revolves aroundThe development of TGV technology is divided into three parts: firstly, explaining the positioning of the TGV technology industry chain; Introduction to Guihua Intelligent TGV Laser DrillingequipmentTechnological breakthroughs and characteristics; Three displays of Guihua IntelligenceTGV overall solution.
TGVPositioning of the Technology Industry Chain
Glass substrate is a chip substrate made of glass as the core material. As the carrier medium of chip bare chips, the chip substrate is a key component of the final stage of the chip packaging process. ButGlass substrates, with excellent high-frequency electrical properties, outstanding thermal and chemical stability, are not only expected to become the core material in advanced packaging technology, but also regarded as an important development direction for the next generation of chip substrates, demonstrating great potential for development in the field of electronic component materials applications①(This is a reference citation).
In the packaging technology system of glass substrates,Glass through-hole(Through-Glass Via, TGV)It is a core key technology. Its industrial chain covers the entire process of production, raw materials, equipment, technology, packaging, testing, and application.TGVThe large-scale application cannot be achieved without technological breakthroughs in core equipment, and the research and development of specialized equipment in the upstream directly determines the accuracy, efficiency, and cost of through-hole machining.
TGVLaser drillingequipmentIntroduction
asTGVLaser drillingequipmentThe key supplier, Guihua Intelligent's technological innovation, has provided important support for breaking through the upstream bottleneck of the glass substrate industry chain, and its equipment performance has achieved industry breakthroughs in multiple core indicators.
Guihua IntelligentTGVLaser drillingequipmentsolvedTGVThe technical difficulties of through-hole forming include high aspect ratio, small spacing, smooth sidewall, good verticality, and low cost.Realize the maximum processing surface width in the industry920 mm* 730 mm, minimum aperture1.5um, maximum diameter to depth ratio1: 200The smoothness of the hole wallless than150nmThe fastest processing speed10000hole/secondConventional precision machined glass thickness200umto1.5mm.
Guihua Intelligent R&DTGVLaser drilling machines have the following characteristics:
�� High precision motion platform
��GHLASERUltra short pulse laser
�� Diffraction limited laser optical technology
�� Ultra fast graphics processing capability
�� Intelligent fitting of original images, optimal and shortest processing path for use
�� Large capacity through-hole processing capability
�� It has the characteristics of high aspect ratio, small spacing, smooth sidewall, good verticality, and low cost.
To translate the characteristics of these devices into actual production efficiency, Guihua Intelligent has built a complete technical chain from laser processing to subsequent processing. itsTGVLaser drillingequipmentThe core performance lays the foundation for the accuracy and efficiency of through-hole machining in the overall solution, seamlessly connecting subsequent process steps and forming an integrated machining system.
Guihua IntelligentTGVSolution Display

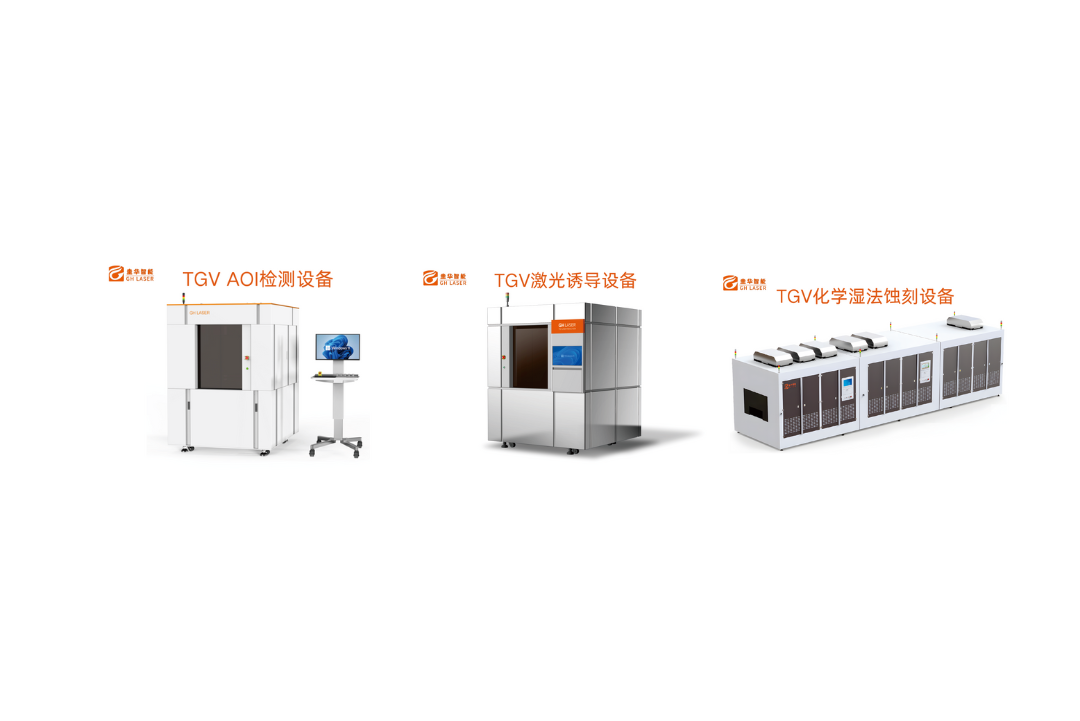

Guihua IntelligentTGVOverall solutionMainly through selective modification of glass substrates using infrared ultrafast lasers, and then through chemical wet processes to form through holes or blind holes, micro hole precision machining is carried out on the glass. The main manufacturing equipment includesTGVLaser drilling equipmentTGVChemical wet etching equipmentTGVAOITesting equipment, which can also cooperate with upstream and downstream customers to completePVDMetalizationRDLGraphic electroplating and other processes.
Equipment sample display
Guihua IntelligentTGVHonor
After years of technological breakthroughs, Guihua Intelligent has mastered laser drilling technology and developedFluorine free wet etchingeclipseTechnology,Global leading level of key technical indicatorsIt is one of the few at home and abroadCapable of board levelTGVEnterprises with overall technical solution supply capability.
��“TGVGlass through-hole equipment”was ratedGuangdong Province Famous High tech Products.
��“Glass based optoelectronic co packaging solution”Won the third prize in the 15th China Shenzhen Innovation and Entrepreneurship Competition and was shortlisted for the 12th China Innovation and Entrepreneurship Competition National Finalsexcellent enterprise.
��“TGVGlass wafer through-hole overall solution project”The project won the 7th edition“Maker China”Intelligent Equipment SME Innovation and Entrepreneurship Competition Enterprise Group“Second Prize”
GuihuaTGVThe Industry Significance of Technology
In the current era of accelerated iteration of advanced packaging technology, the potential of glass substrates as the next generation chip substrates is gradually being releasedTGVThe breakthrough of technology is the core prerequisite for its large-scale application.
Guihua IntelligentFully independently developedTGVLaser drillingequipmentAs a fulcrum, a complete solution covering processing, testing, and supporting processes has been built, which not only solves the equipment bottleneck upstream of the glass substrate industry chain, but also redefines the accuracy, efficiency, and cost boundaries of through-hole processing through technological innovation.
In the future, with5G、3DWith the surge in demand for high-density interconnects in fields such as packaging, Guihua Intelligent will continue to delve into the forefront of laser and material interaction technology, and promote the upgrading of the glass substrate packaging industry with interdisciplinary research and development capabilities, providing key support for the advancement of the global electronic information industry.
①Quoted from Yu Tian,Chen Xin,Lin Jingyu,Wait.Research progress on RF integrated application of glass through-hole technology[J/OL].Electronics and Packaging,1-14[2025-07-16]
